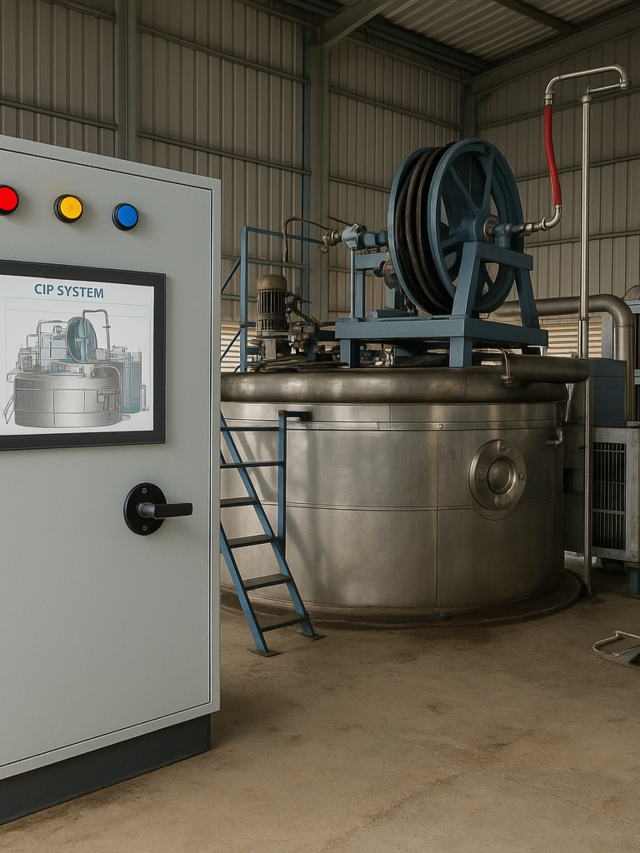

CIP (Clean-in-Place) System – Automated Cleaning Process Control

We successfully automated a Clean-in-Place (CIP) system for a food industry application, enabling hygienic and repeatable cleaning of process lines and tanks without manual dismantling. This enhanced both operational efficiency and compliance with cleaning standards.

⚙️ Process Overview

The CIP system controls the flushing, washing, and rinsing of internal surfaces using cleaning agents, hot water, and sanitizers. The entire operation was automated using a Siemens PLC and a Unified Comfort HMI, ensuring ease of operation, accurate sequencing, and consistent results.

Our Automation Solution

• We developed a complete logic-based control sequence using Siemens PLC and provided an intuitive operator interface through Unified HMI. Key features include:
• Cleaning cycle selection (alkali, acid, water rinse, etc.)
• Real-time display of temperature, flow rate, and tank levels
• Step-wise cycle monitoring with progress indicators and alerts
• Manual override options with built-in safety checks for maintenance

️ Instruments Used

• To ensure precision and reliability, we integrated:
• ️ RTDs – for accurate temperature monitoring of cleaning fluids
• On/Off and Control Valves – for routing chemicals and rinse water
• Reflective Sensors – to detect hose retraction and ensure cleaning readiness
• Flow and (optionally) Conductivity Sensors – for monitoring cleaning flow and solution quality

System Highlights

• Automated, recipe-driven cleaning cycles
• Safety interlocks at each critical stage
• Unified HMI with user-friendly status display and control access
• Optional logs or indicators for cleaning validation

✅ Project Outcomes

• ⏱️ Reduced cleaning time with minimal manual effort
• Optimized chemical and water usage
• ✅ Consistent hygiene across batches and changeovers
• ‍ Simple operator control through well-designed HMI screens
